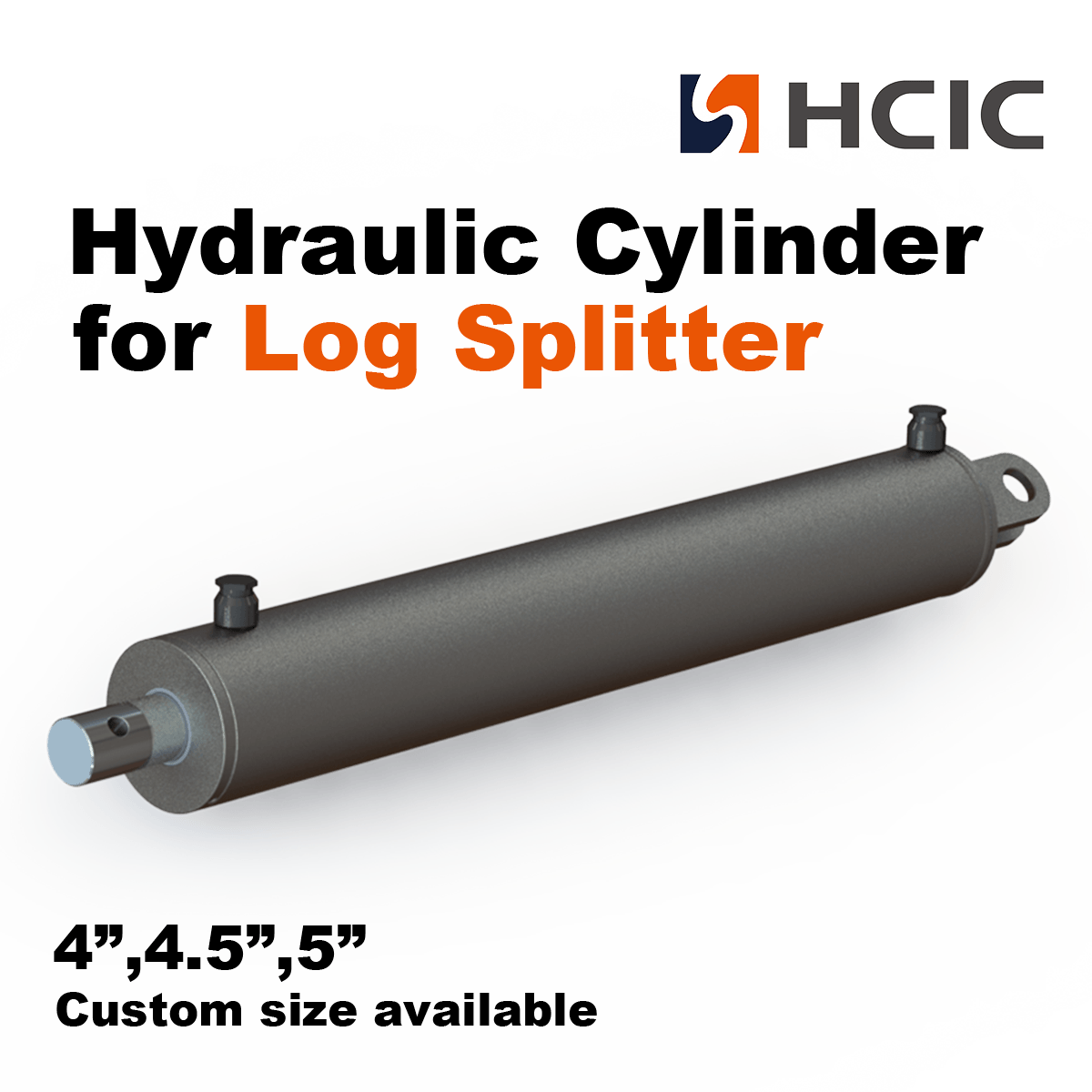

Cylinder Type: Welded
Action: Double-Acting
Bore (ID): 4.5″
Stroke: 24″
Rod (OD): 3″
Rod End (OD): 2.374″
Mounting Type: Clevis
Mounting Pin (OD): 1.25″
Rod End Type: Hole
Rod End Pin (OD): 1″
Work Ports: 3/4″ NPT(F)
Max Working Pressure: 3,500 PSI
Retracted Length: 33.76″ (pin to pin, center on center)
Extended Length: 57.76″ (pin to pin, center on center)
Cylinder Length: 36.28″ (retracted, edge to edge)
Column Load: 55717 lbs
Product Weight: 90.00 lbs
Barrel Material: Quenched and tempered steel (ASIS 1020)
Rod Material: High tensile ground and polished chrome plated steel (ASIS 1045)
Gland Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)
Piston Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)
