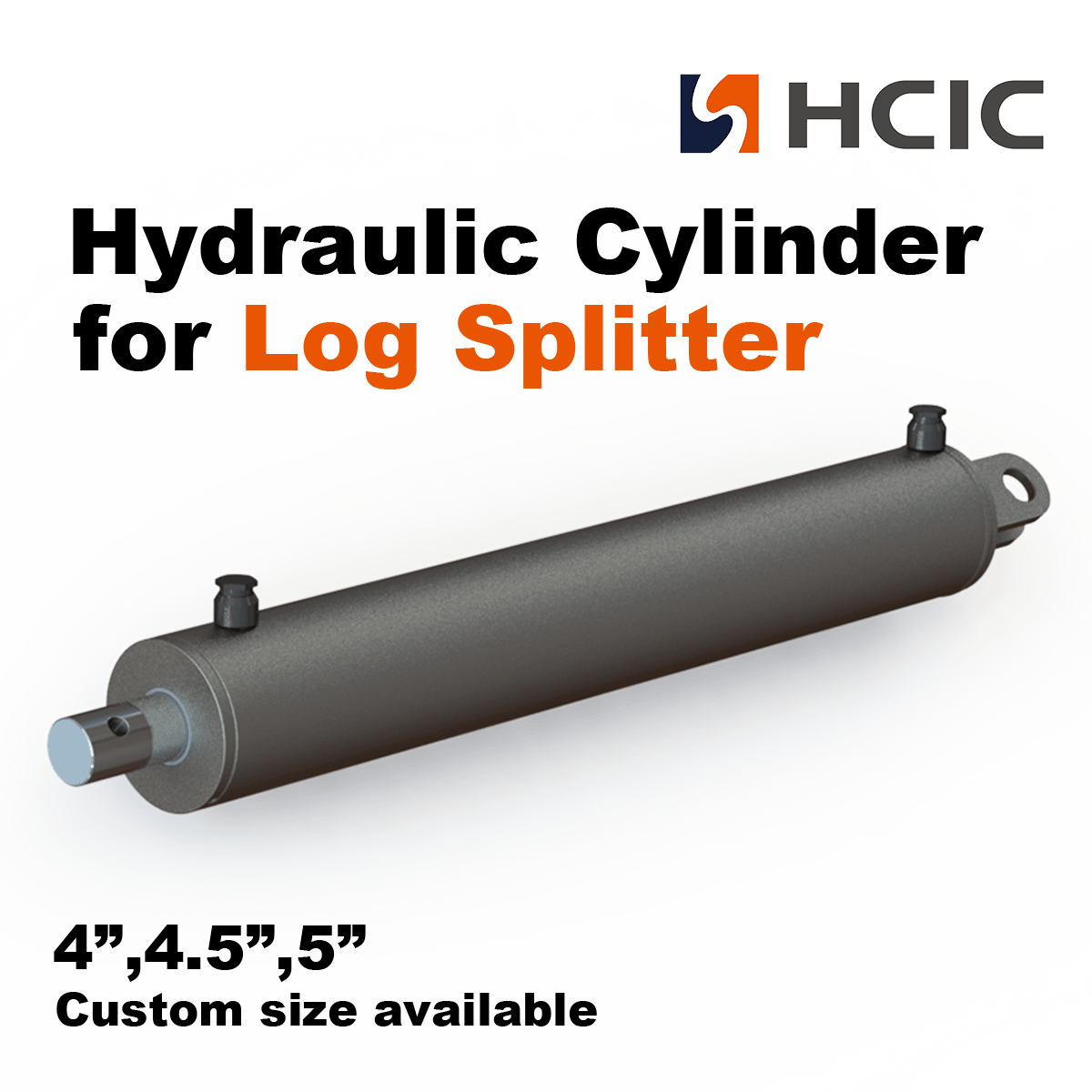

Cylinder Type: Welded
Action: Double-Acting
Bore (ID): 5″
Stroke: 24″
Rod (OD): 2″
Rod End (OD): 2.375″
Mounting Type: Clevis
Mounting Pin (OD): 1.25″
Rod End Type: Hole
Rod End Pin (OD): 1″
Work Ports: 3/4″ NPT(F)
Max Working Pressure: 3,500 PSI
Retracted Length: 39.76″ (pin to pin, center on center)
Extended Length: 69.76″ (pin to pin, center on center)
Cylinder Length: 42.28″ (retracted, edge to edge)
