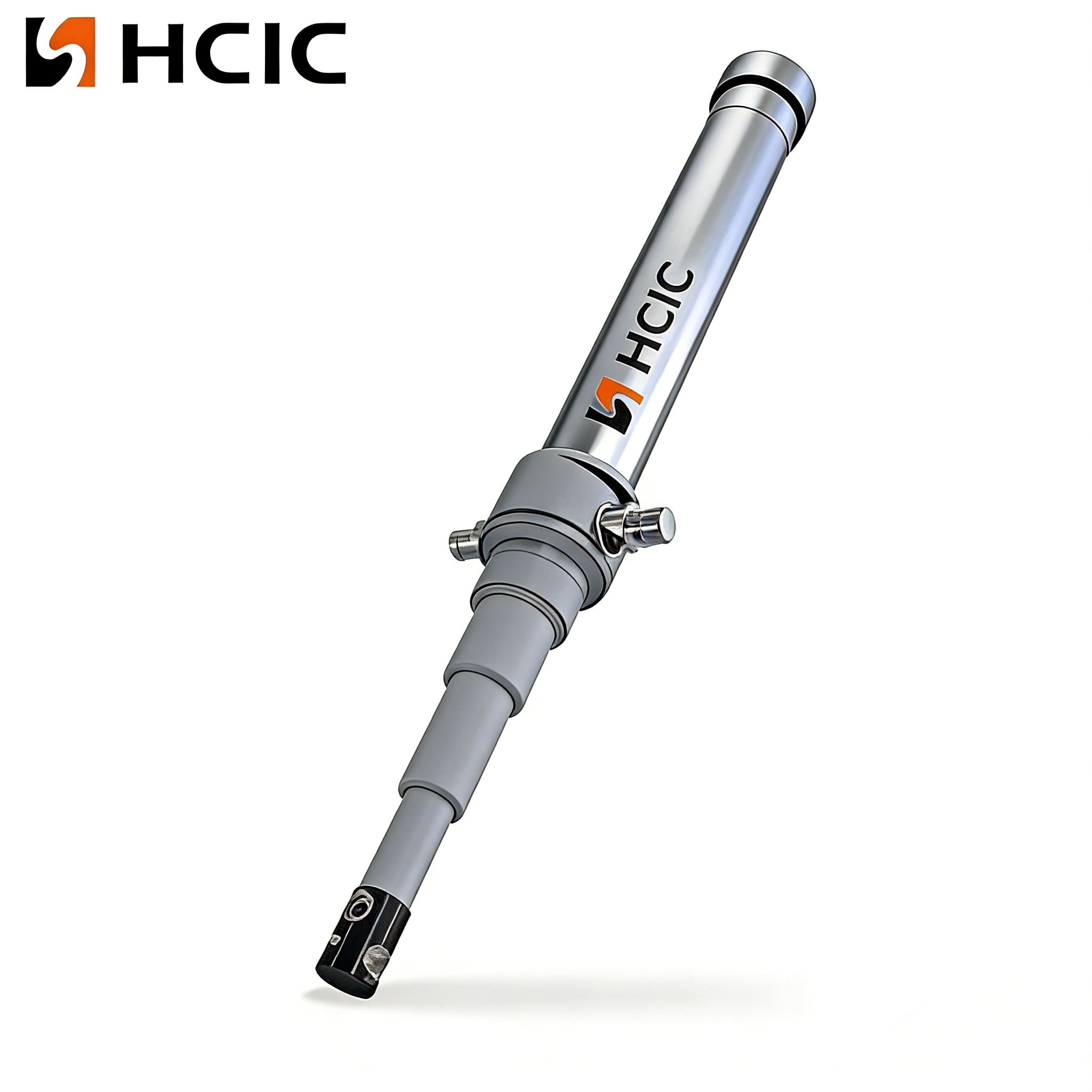

Telescopic Cylinders

TELESCOPIC CYLINDERS

Telescopic cylinders supply a lengthy stroke from a very compact retracted length.HCIC has trip designingtelescopic for a quantity of industries and purposes and can work with you to format a single acting, a single acting/double performing combination, or a double appearing design.

Single-Acting Telescopic Cylinders
Single-acting cylinders use hydraulic stress to extend, and retract due to load from gravity or some different exterior force.

Hydraulic glide and strain extends the cylinder

Gravity or some different exterior pressure will retract the cylinder

Holds position

Long stroke in a compact closed length

Larger outer diameter than rod cylinders

Less complicated diagram than double acting

Double-Acting Telescopic Cylinders
Double-acting cylinders use hydraulic pressure for each extension and retraction.

Hydraulic energy retracts cylinder as hostile to gravity/force

Retract pressure is capable to pull load

Conventional telescopic cylinders

Both ports placed on rod end

Piston seals are generally solid iron rings

Cylinder is no longer designed to maintain load in actual positions (drifting)

Minimum go with the flow required to forestall stalling

Special elements can be designed into telescopic cylinders

Both ports on the barrel diagram avoids transferring hoses and put on patterns

Positive piston seals permit cylinder to keep the load and get rid of the minimal glide requirement

Less useless lengths per stage than a traditional double performing telescopic

OPTIONAL FEATURES

Up to 5000 PSI working pressure

2 to 5 working sections

Up to 20”barrel diameter

Alternative barrel tube stage coatings handy together with nitride, chrome over nickel, plasma spray

Stroke lengths up to 480”(40 feet)

Alternative rod substances reachable such as carbon steel, precision honed, tough chrome plated stages.

Optional built-in machined piston design

Steel or ductile internally threaded gland design

Optional cease mounts: trunnion, clevis, tang, move tube, spherical bearing, customized bushing, move drilled gap


View as

  • We have a complete and scientific quality management system, with strong strength, excellent service, professional experience, complete supporting facilities. We believe that what you get in Huachen is not only the guarantee of Heil Durapack Dump Body Packer Cylinder quality, but also the professional services we provide you at work.

  • We have a complete and scientific quality management system, with strong strength, excellent service, professional experience, complete supporting facilities. We believe that what you get in Huachen is not only the guarantee of Heil 5000 25YD Ejector Cylinder quality, but also the professional services we provide you at work.

  • We have a complete and scientific quality management system, with strong strength, excellent service, professional experience, complete supporting facilities. We believe that what you get in Huachen is not only the guarantee of EZ Pack Hercules FL Ejector Cylinder quality, but also the professional services we provide you at work.

Huachen is a famous Telescopic Cylinders manufacturers and suppliers in China. If I want to wholesale, what price will you give me? If your wholesale quantity is large, we can provide you with cheap price. More importantly, we provide customized, You can rest assured to buy hot selling and high quality Telescopic Cylinders made in China from us. We manufacture double acting telescopic cylinder for refused truck, snow plow hydraulic cylinder, etc. Once you buy our durable products which is in stock, we guarantee the large quantity in quick delivery. Welcome friends and customers from home and abroad to visit our factory and sincerely hope to cooperate with your esteemed company.
