Vertical Mini Hydraulic Power Packs Place of Origin:China Brand Name:HCIC Minimum Order Quantity:50sets Price:USD150/set Packaging Details:Packed in carton boxes ,and then wooden pallets Delivery Time:25 work days Payment Terms:T/T, Western Union, L/C Supply Ability:5000pcs per month Motor:DC12V 1.6Kw Function:Double Acting Tank:Plastic 4.5L Oil Port:G3/8"

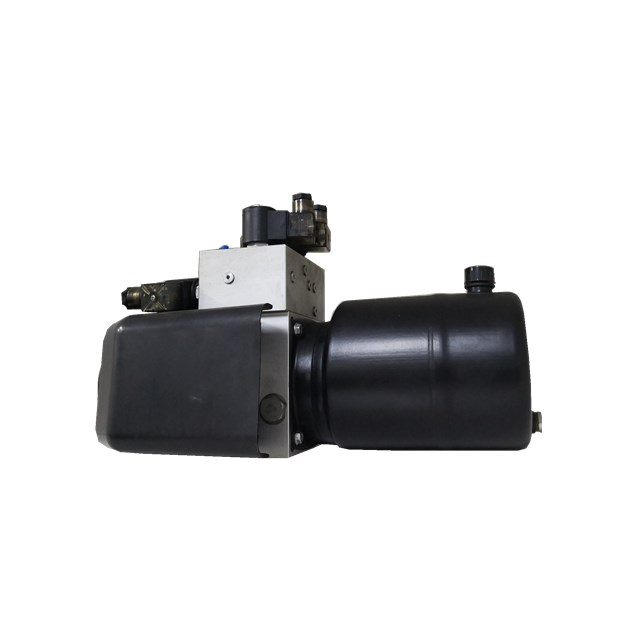

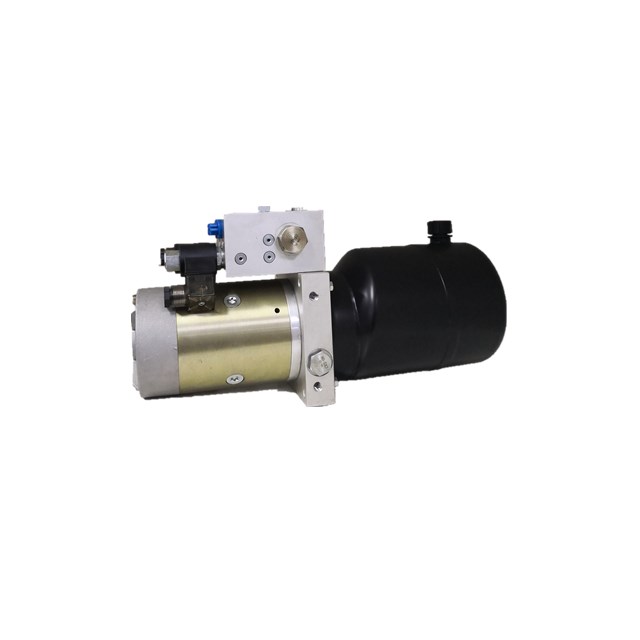

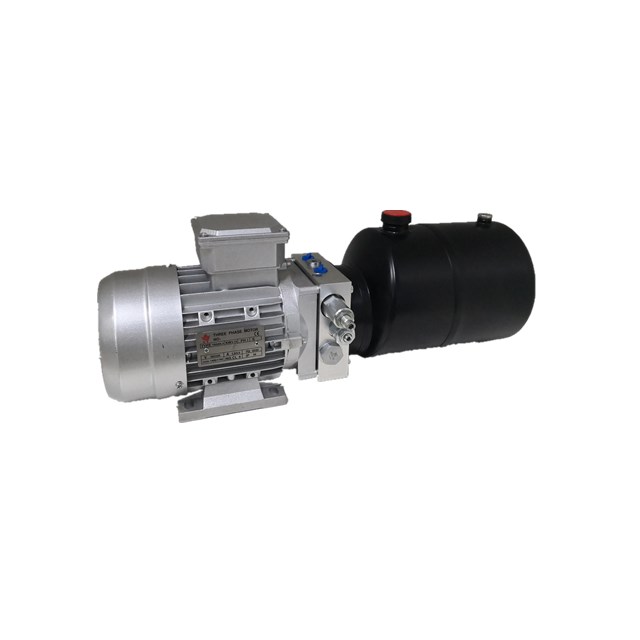

Vertical Mini Hydraulic Power Packs
Overview:
Introducing our Vertical Mini Hydraulic Power Packs, designed to deliver efficient and reliable hydraulic power in a compact vertical configuration. This power pack is ideal for applications where space is limited, yet high performance is crucial.
12V 24V volt hydraulic power pack mini table truck platform stacker hydraulic power packs sale,this compact structure power unit wquipped with dynamic flow control device to keep constant speed,its advantage:low noise,small size and little weight makes it very suitable for table truck & platform stacker,etc.
1) The duty if this hydraulic power unit is S3.I.E.,30 seconds on and 270 seconds off.
2) Clean all the hydraulic parts concerned before mounting the power unit.
3) Viscosity of the oil should be 15-68cst.
4) This power unit should be horizontal.
5) Check the oil level in the tank after the first star of the power unit.
6) Change the oil after the first 100 hours of using the power unit,then change the oil every 3000 hour.
It is widely use in many fields like the following:
Hydraulic cylinder application field:
1. Applicable to machine tool industry
2. Suitable for family use
3. Applicable to metallurgical industry
4. Applicable to engineering industry
5. Applicable to agricultural machinery
6. Applicable to the automobile industry
7.Applicable to light textile industry
Feature of Vertical Mini Hydraulic Power Packs:
Compact Vertical Design: The power pack is ingeniously designed to fit into tight spaces, ensuring versatility in installation.
Highly Efficient: Despite its compact size, it offers powerful hydraulic performance, making it suitable for various applications.
Durable Construction: Built with high-quality materials, ensuring longevity and consistent performance even under demanding conditions.
Versatile Applications: Suitable for a range of applications, including lifting mechanisms, material handling, and more.
Specification of Vertical Mini Hydraulic Power Packs:
All parameters can be customized
Parameters of the sample
Technical Parameters
Mini Hydraulic Power Unit Pack|
Place of Origin |
China |
|
Brand Name |
HCIC |
|
Pressure |
16Mpa or required |
|
Minimum Order Quantity |
50sets |
|
Packaging Details |
Packed in carton boxes ,and then wooden pallets |
|
Delivery Time |
25 work days |
|
Supply Ability |
5000pcs per month |
|
Motor |
DC12V 1.6Kw |
|
Tank |
Plastic 8L |
|
Function |
Double Acting |
|
System Pressure |
160Bar |
|
Relief Valve |
RV2-08 |
|
Oil Port |
Oil Port |
|
Gear Pump |
2.1cc/r |
|
Check Valve |
CV2-08 |
Production of Vertical Mini Hydraulic Power Packs:
HCIC has a professional product quality test during the production process. These include the cylinder friction test of the hydraulic cylinder, the shock durability test, the drift rate test, the circulation test and the pressure test (the rated pressure is 150%in 5 minutes). The hydraulic cylinder test system is divided into single -acting and dual -action tests. When 100 % complete the test, they will be transferred to the quality inspection department for the final quality inspection link, and finally paste the label to put the market.
Our Service:
Customized Solutions: We specialize in providing tailor-made hydraulic solutions to meet specific customer requirements, ensuring optimal performance and efficiency.Technical Support: Our dedicated technical support team is available to assist customers with inquiries or concerns regarding our products and their applications.Customer Satisfaction: At HCIC, we prioritize customer satisfaction by providing top-notch products and services, maintaining a high level of customer contentment.
Why choose us?
Innovative Solutions: We are at the forefront of hydraulic technology, constantly developing innovative solutions to give our customers a competitive edge.Reliable Performance: Our hydraulic power packs are known for their reliability and durability, providing consistent performance across various industrial settings.Global Reach: With a well-established logistics network, we efficiently serve customers worldwide, ensuring timely delivery and excellent service.
FAQ:
What is the standard lead time for Vertical Mini Hydraulic Power Packs?
Our standard lead time is detailed in our product manual. Please refer to the manual for specific lead time information.
Can this power pack be used for both horizontal and vertical applications?
Yes, the Vertical Mini Hydraulic Power Pack is versatile and suitable for both horizontal and vertical applications.
Packing & Shipping:
We have a reliable logistics system in place to ensure prompt and secure delivery of our products to customers around the world.
