York Line Cylinders

1. Product Introduction

We are committed to meeting customer requirements by providing safe and reliable products, services, and information of the highest quality in terms of reliability, on-time delivery, and customer satisfaction while ensuring employee safety, fostering employee relations and driving efficiency improvements.

Our success is based on continually improving the effectiveness of our products, processes, and Quality Management System.We are expecting become your long-term partner in china.

2.Product Parameter (Specification)

York Line Cylinders

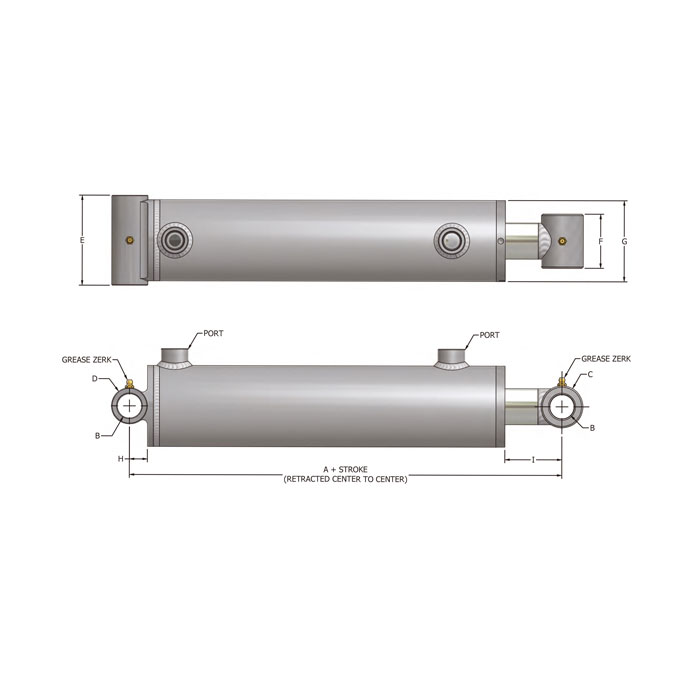

The HCIC YORK cross tube series is composed of a high-quality welded cylinder utilizing a strong forged steel cross tube base along with a welded rod cross tube with grease zerks and optionally a HCIC YORK Clevis Series that utilizes a strong forged steel base. The rod clevis is threaded on with a clamping locking bolt that prevents thread damage.

Designed for performance, all YORK cylinders contain a heavy-duty piston and piston stem. The internally threaded gland reduces the cross-section and is easily removed for maintenance. YORK cylinder line is perfect for construction, agricultural and general use applications.

HCIC YORK Cross Tube Series is available with bore sizes starting at 1 ½" to 8" with strokes of 4" up to 60".

HCIC YORK Clevis Series is available with bore sizes starting at 2" to 4" with strokes of 4" up to 48".

HCIC YORK cylinder components include the following standard features:

Barrel is manufactured from high tensile cold drawn tube, precision honed for extended seal life

Rod is manufactured from High tensile SAE C1045, ground & polished hard chrome plated

Piston & Gland are manufactured from ductile iron 65-45-12 (ASTM A536)

Pin & Pin clip are high tensile zinc plated steel

All seals are manufactured to North American specifications and standards

SAE Ports

100% hydraulic tested

Standard black paint, custom colors available.

3.Product Feature And Application

No matter what industry you’re in, we have the right hydraulic cylinders for you! Our heavy duty, high-quality hydraulic cylinders can be used in a variety of industries, including:

Truck & Trailers

You’ll find our full line of cylinders can withstand harsh weather conditions and rugged use and are suitable for numerous styles of dump trailers, including:

Telescopic trailers

Scissor hoist trailers

Goose-neck trailers

Tilt & load trailers

Waste Management Equipment

Our society depends on garbage trucks and other waste vehicles. Our hydraulic cylinders keep the trucks running and are coated with a high-quality paint that is resistant to corrosion, which is essential for waste management vehicles such as:

Refuse or Garbage Trucks

Roll Off Trucks

Stationary Compactors

Industrial, Vertical Balers

Lugger Hoist Trucks

Cable Hoist Truck

Hook Hoist Trucks

4.Product Details

HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.

Our products scope is as below:

· 1 YEAR WARRANTY

· GOOD COST SAVINGS

·  Professional design service

· PSI:  2,500 – 10,000

· BORE DIAMETERS:  2” – 60”  (Most of our cylinders are in the 3” – 14” range)

· Max. Length:  700” (58 Feet)

5.Product Qualification

Our hydraulic engineers directly involved in the hydraulic system assembly guidance,inspection and commissioning. According to North American standards,we are committed to the hydraulic system to do better and better. The hydraulic system with reliable quality access to the majority of users of praise,as a number of well-known mechanical engineering enterprises supporting suppliers.

From agriculture to automotive and every industry in between, HCIC Hydraulic products are designed to meet the most demanding requirements.The production line was developed because we understand the need for professional performance and durability.

All cylinders are chromed, polished and individually heat-treated shaft provides extended cylinder life.HCIC have professional performance testing before delivery.The hydraulic cylinder testing capabilities include cylinder friction test, cycle test, impulse endurance test, drift rate test (piston seal leakage), proof pressure test (apply 150% rated pressure in 5 minutes). The hydraulic cylinder test system can be configured for testing single-acting and double-acting hydraulic cylinders.And all cylinders are 100% hydraulically tested to two times working pressure.

6.Deliver,Shipping And Serving

Shipment: for small quanity, we will choose DHL, FedEx, UPS, TNT, or EMS with most competitive freight for you! for bulk quantity, we can arrange by sea with FOB price. Competitive freight will be given for reference! for urgent order, airline shipping is also available.

We are one of the leading manufacturers of hydraulic cylinder in China, specialized in producing all kinds of hydraulic cylinder for dump truck, bulldozer, excavator, agricultural machinery and heavy equipment, with high quality and competitive price.

The international market has covered North America, South America, Australia, Europe and Southeast Asia, with the customers of KOMATSU, Poclian, Howo, and etc.

We do custom design and fabrication service on your requirements or drawings with low cost and high quality. To get an immediate quotation, please provide the following necessary parameters:

1. bore diameter

2. stroke

3. working pressure

4. front and back end mounting type (U clevis, earring or flange, etc.)

5. using frequency

7.FAQ

How many days you need to install the equipment?
"From agriculture to automotive and every industry in between, HCIC Hydraulic products are designed to meet the most demanding requirements.
The production line was developed because we understand the need for professional performance and durability.
All cylinders are chromed, polished and individually heat-treated shaft provides extended cylinder life.
And all cylinders are 100% hydraulically tested to two times working pressure."
How many staff abroad you sent to install the equipment?
we provide online and install book to help install the cylinder
You have sales target finished amount requirement to the distributor?
over one million USD
Can I transfer the money to you then you pay to other supplier?
We can provide transshipment and payment services with very little handling fee
Can I delivery the goods from other supplier to your factory? Then load together?
We can provide transshipment and payment services with very little handling fee
When will you leave your factory and to have your spring festival holidays?
our sales are all online for whole year when you need help
Can the equipment be installed under hot weather?
Our products can be used in cold and hot conditions, but it needs to be specifically mentioned when you make an inquiry. We will choose special materials of seals and metal materials according to your needs.
Can Your products be installed under the cold weather?
Our products can be used in cold and hot conditions, but it needs to be specifically mentioned when you make an inquiry. We will choose special materials of seals and metal materials according to your needs.
Do You have office in shanghai or guangzhou that i can visit?
our office is at Jinan
Can you send your staff to install the equipment for us?
If there are special needs, we can provide on-site installation services
Can I only buy some spare parts from you?
yes
Will you will attend the fair to show your products?
yes
Can you send your equipment to my warehouse in guangzhou?
Yes, we can transport to the Guangzhou warehouse, but we are closer to Qingdao Port
How long it takes you to provide the designing options for us?
usually 2-10 days,based on the project
What is your products standardization?
"Our hydraulic engineers directly involved in the hydraulic system assembly guidance,inspection and commissioning.
According to Rexroth standards,we are committed to the hydraulic system to do better and better.
The hydraulic system with reliable quality access to the majority of users of praise,
as a number of well-known mechanical engineering enterprises supporting suppliers. "
How do you pack the equipment?
Before preparing to ship, we will provide you with a detailed shipping package plan, as well as clear packaging photos
Can you can design the equipment according to our size?
We can provide customers with independent design, and also follow customers drawings, as well as OEM
How many years have your company made this kind of equipment?
we are 21 years Professional Hydraulic Manufacturer
Which certificate do you have for your equipment?
ISO9001;CE
How many staffs do you have in your factory?
over 600
How can I to be your agent in my country?
We can communicate by phone or video conference
Do you have any agent in our country?
not yet
Do you have any real project pictures of the equipment?
yes
How far is your factory from the city hotel?
not far
How far is your factory from the airport?
in one hour
How long it will take from guangzhou to your factory?
we are at north part of China,we are at ShanDong province
Where is your factory located?
we located at Jinan city,Shandong Province
Do you provide free spare parts ?
For large quantities of products, we can provide free spare parts
What is the age range for your products?
all age
Do you have detailed and professional installation manual?
We can provide detailed product drawings, instruction manuals, and other documents proposed by customers
If OEM is acceptable?
We accept OEM custom processing, sign a confidentiality agreement, we will keep the products confidential
Do you provide sample? Free or charge?
We will charge a small handling fee for the samples we provide, and then reduce or exempt them in bulk products
What is your term of payment?
for a simple the payment method we use 100% T/T, Western Union, Paypal, Moneygram, LC, for a great amount this will be 30% deposit and 70% balance before shipping.
What is your MOQ?
we can start with 1 pc
Are you a trading company or a manufacturer?
we are manufacture
How long is your delivery time?
from 15 days to 45 days
How many production lines in your factory?
We have 4 branch factories with a processing capacity of more than 20 million US dollars
